U368TS-U610TS

1.Complete models
Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules to meet various individual needs and cost-effective.

2.High repeatability
With more than 20 years of practical experience in research and development of plastic machines, using servo system, which is stable and fast, high efficiency and energy saving, low noise, high repeatability.

Zhejiang Sonly Intelligent Equipment Co.,ltd

1.Sonly is focusing on injection molding machine since it is established, according to various individual needs of clients, SONLY elaborately creates 28 machine models from 98 to 3400 tons, finally they become the ideal choice in the market.

2.Sonly injection molding machine has large screw L/D ratio, fast plasticizing speed, short cycle time and strong plasticizing capacity, to grantee the whole machine works with high efficiency.

3.SONLY creates new siamesed structure, stable and reliable servo system and high quality components, which to insure machine performance stability and accuracy.

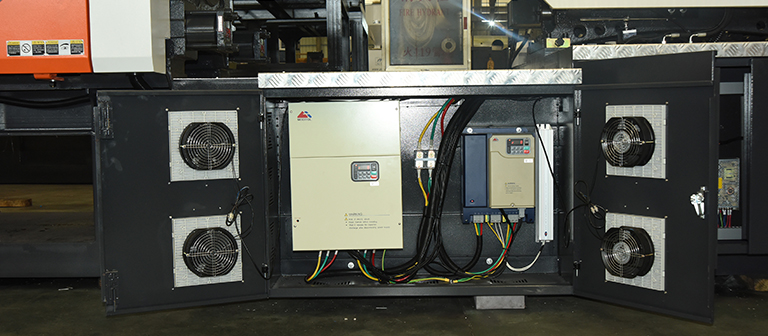

4.SONLY injection molding machine adopts high quality servo motor system to lower power consumption. Multiple optimized oil circuit reduce the movement resistance and power consumption also. The whole machine works with stable function, convenient operation and automatic monitoring.

5.Compared the same model with others, we have a bigger tie bar space, injection volume and open stroke, which means can produce bigger plastic products to get high cost performance.

6.Arched plate design can protect mold effectively. Especially when the tie bar space is big but mold is small.

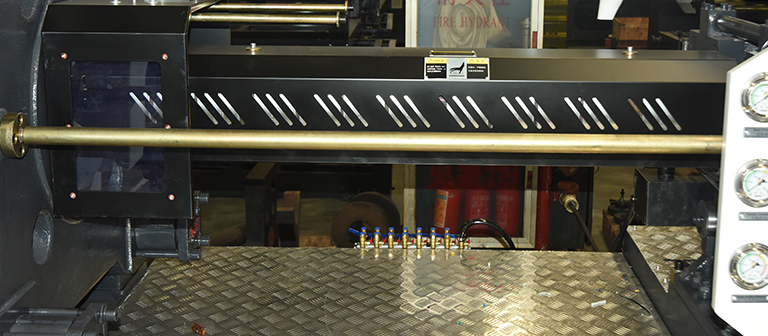

7.The bridge designed injection seat ensure smooth and precise injection repetition.

8.All frames are analyzed by special software, the rigidity is good and force bearing type is reasonable.

Specifications

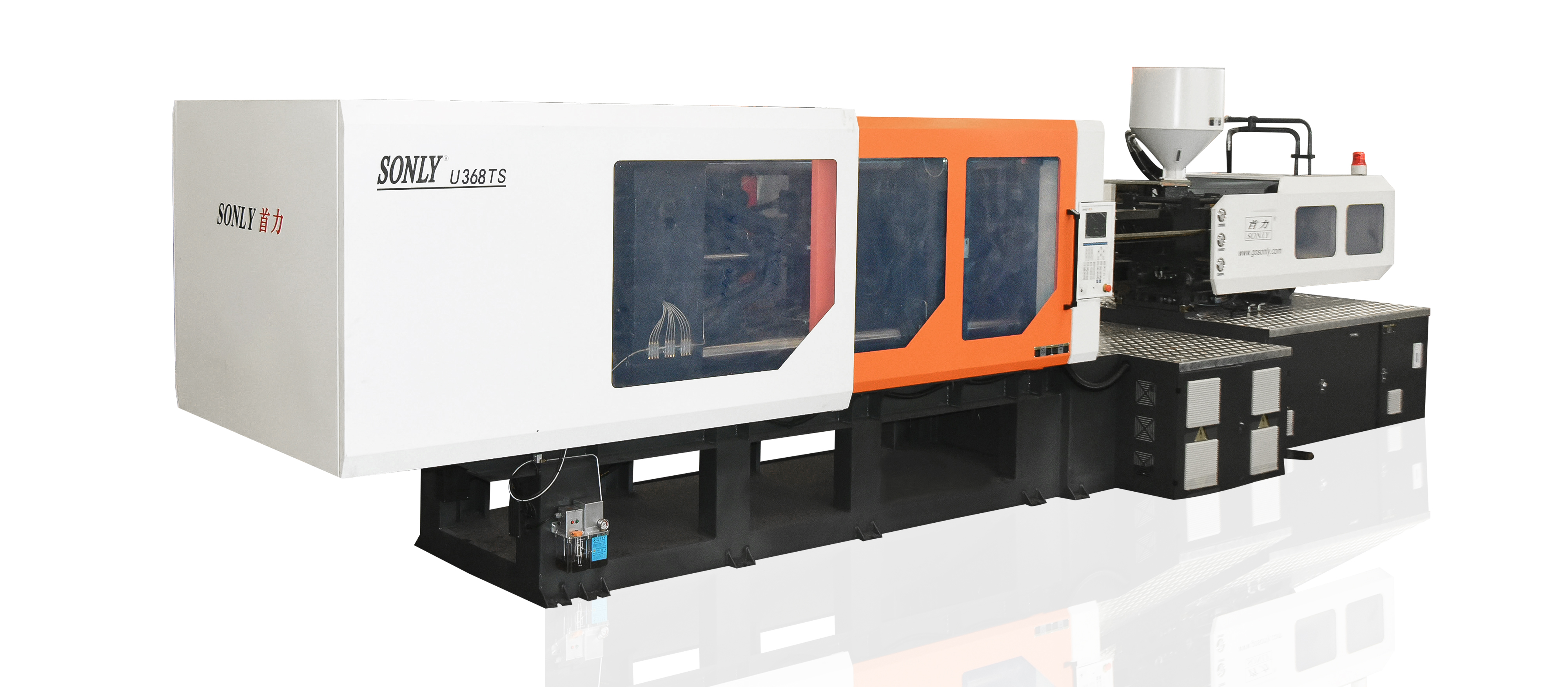

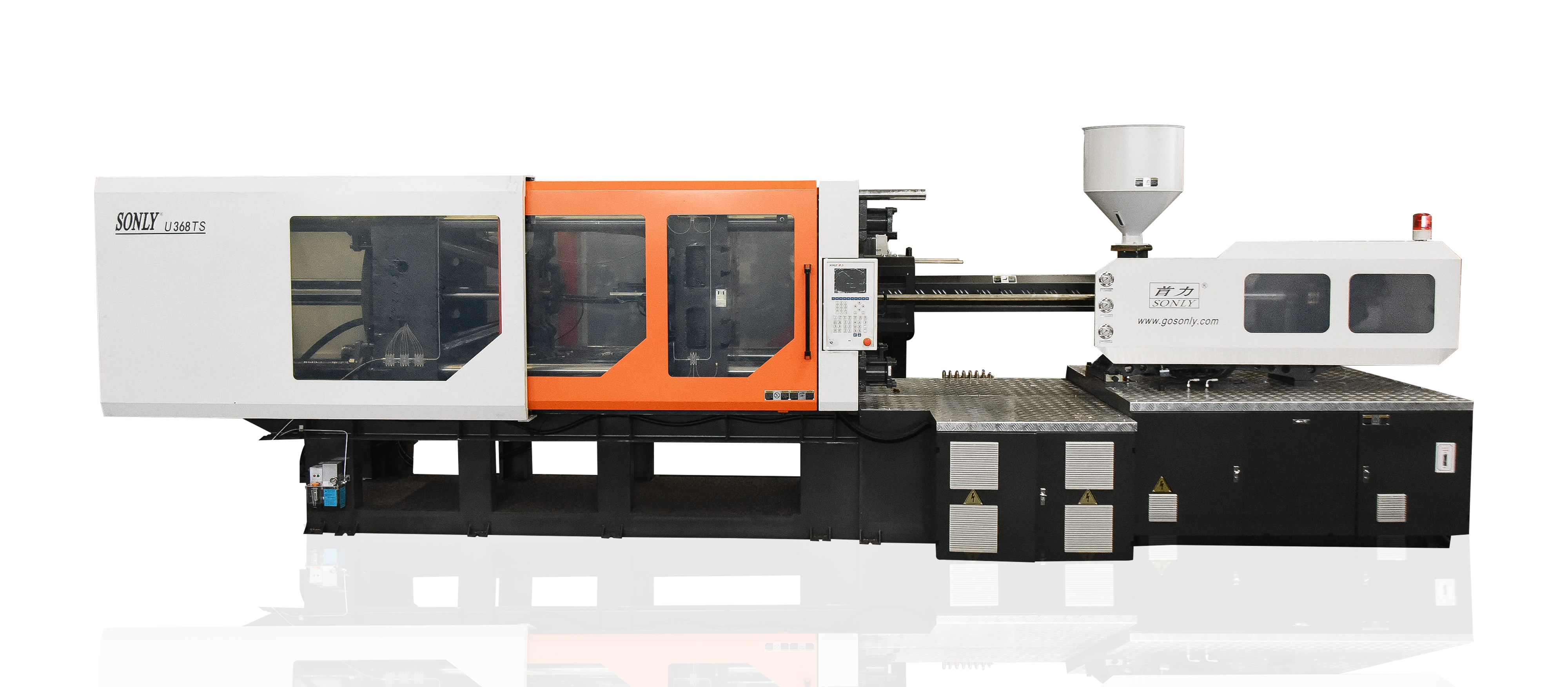

U368TS

Internationally Recognized Model

2140

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

65

70

75

Screw L/D Ratio (L/D)

23.7

22

20.5

Shot Volume (cm3)

1177.8

1366

1568.1

Injection Pressure (Mpa)

181.7

156.7

136.5

Screw Speed (rpm)

144

Shot Weight (g)

1072

1243

1427

Shot Weigh (oz)

37.81

43.85

50.34

CLAMPING UNIT

Clamping Force (Kn)

3680

Toggle Stroke (mm)

660

Space Between Tie Bars (mm)

685*685

Max.mould Height (mm)

660

Min.mould Height (mm)

210

Ejector Stroke(mm)

170

Ejector Force(Kn)

90

Ejector Number

12+1

 Die Hole Diameter (mm)

160

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

37

Heating Power (Kw)

27.9

Oil Tank Cubage (L)

600

Machine Weight (Ton)

13

Boundary Dimension (m)

7*2*2.46



Servo Driver Capacity (Kw)

45

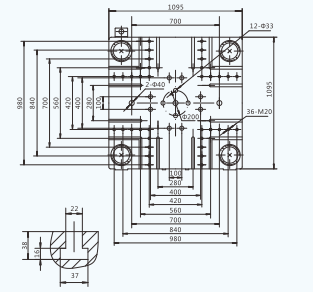

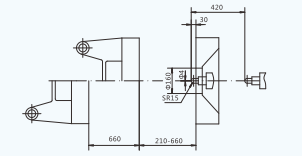

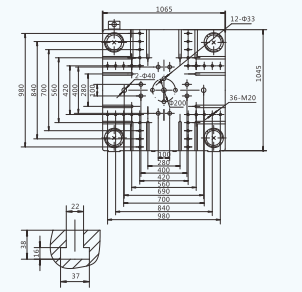

Platen Dimensions



Platen Dimensions



Specifications

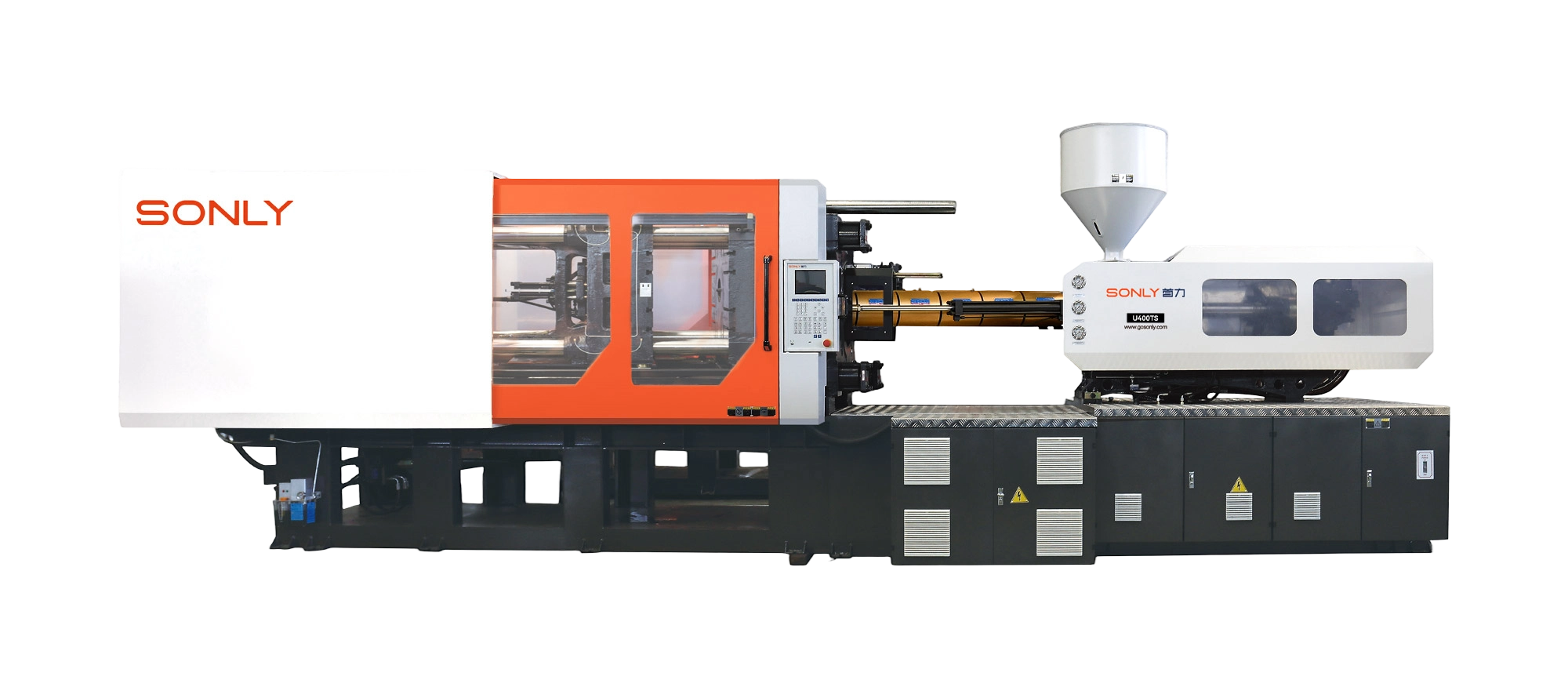

U400TS

Internationally Recognized Model

2590

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

70

75

80

Screw L/D Ratio (L/D)

23.6

22

20.6

Shot Volume (cm3)

1446.9

1661

1889.8

Injection Pressure (Mpa)

179.1

156

137.1

Screw Speed (rpm)

144

Shot Weight (g)

1317

1512

1720

Shot Weigh (oz)

46.46

53.33

60.67

CLAMPING UNIT

Clamping Force (Kn)

2180

Toggle Stroke (mm)

500

Space Between Tie Bars (mm)

510*510

Max.mould Height (mm)

530

Min.mould Height (mm)

200

Ejector Stroke(mm)

150

Ejector Force(Kn)

70

Ejector Number

8+1

 Die Hole Diameter (mm)

160

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

18.5

Heating Power (Kw)

16.3

Oil Tank Cubage (L)

230

Machine Weight (Ton)

7

Boundary Dimension (m)

6.2*1.47*2.2



Servo Driver Capacity (Kw)

22



Platen Dimensions



Platen Dimensions



Specifications

U438TS

Internationally Recognized Model

2690

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

75

80

85

Screw L/D Ratio (L/D)

23.5

22

20.7

Shot Volume (cm3)

1727.1

1965

2218.3

Injection Pressure (Mpa)

155.9

137

121.4

Screw Speed (rpm)

211.5

Shot Weight (g)

1572

1788

2019

Shot Weigh (oz)

55.45

63.07

71.22

CLAMPING UNIT

Clamping Force (Kn)

4380

Toggle Stroke (mm)

740

Space Between Tie Bars (mm)

765*765

Max.mould Height (mm)

780

Min.mould Height (mm)

280

Ejector Stroke(mm)

170

Ejector Force(Kn)

90

Ejector Number

12+1

 Die Hole Diameter (mm)

200

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

45

Heating Power (Kw)

33.6

Oil Tank Cubage (L)

750

Machine Weight (Ton)

18

Boundary Dimension (m)

8*2.1*2.53



Servo Driver Capacity (Kw)

30+45



Platen Dimensions



Platen Dimensions



Specifications

U508TS

Internationally Recognized Model

3300

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

80

85

90

Screw L/D Ratio (L/D)

23.4

22

20.8

Shot Volume (cm3)

1964.7

2218

2486.6

Injection Pressure (Mpa)

168

148.8

132.7

Screw Speed (rpm)

171

Shot Weight (g)

1788

2018

2263

Shot Weigh (oz)

63.07

71.18

79.83

CLAMPING UNIT

Clamping Force (Kn)

5080

Toggle Stroke (mm)

775

Space Between Tie Bars (mm)

805*715

Max.mould Height (mm)

800

Min.mould Height (mm)

290

Ejector Stroke(mm)

225

Ejector Force(Kn)

152

Ejector Number

12+1
+1

 Die Hole Diameter (mm)

200

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

45

Heating Power (Kw)

38.3

Oil Tank Cubage (L)

900

Machine Weight (Ton)

20

Boundary Dimension (m)

8.6*2.3*3



Servo Driver Capacity (Kw)

30+45



Platen Dimensions



Platen Dimensions



Specifications

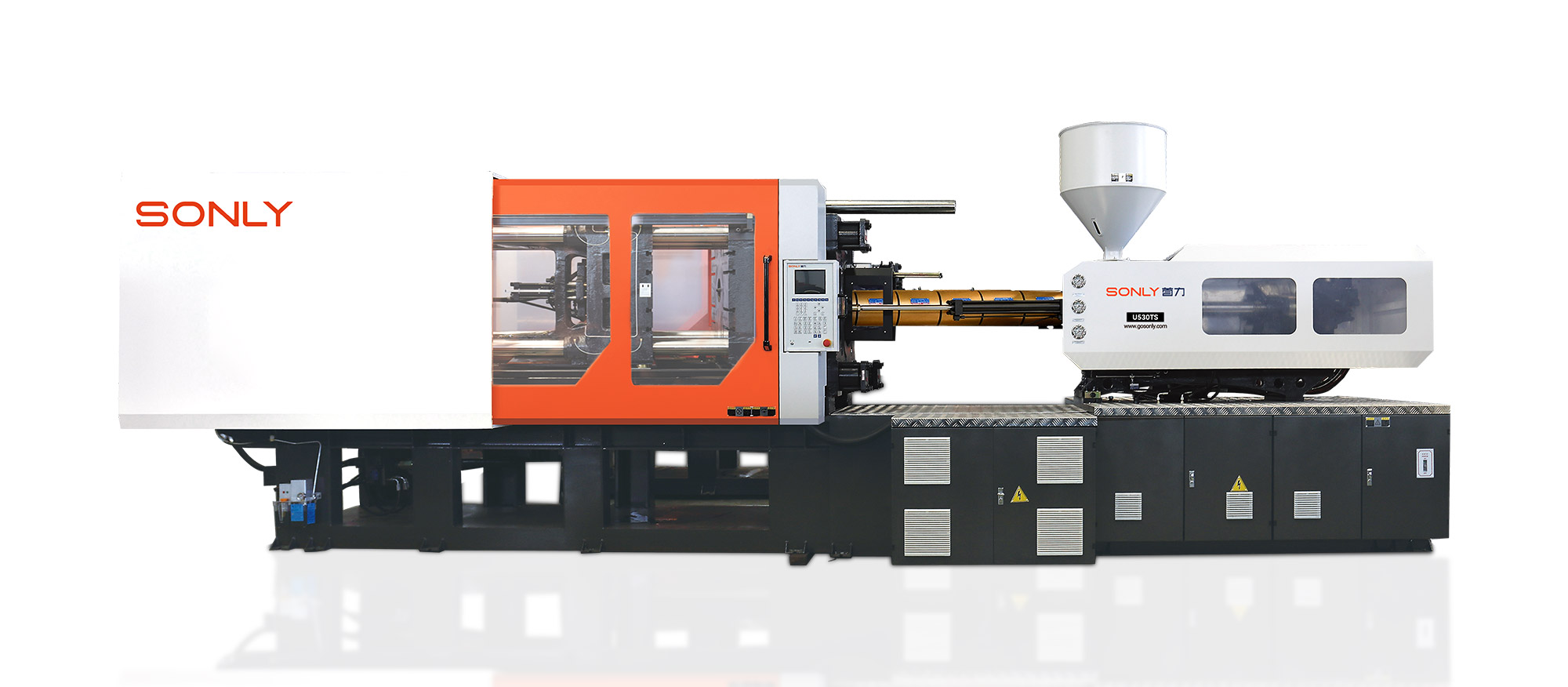

U530TS

Internationally Recognized Model

3300

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

80

85

90

Screw L/D Ratio (L/D)

23.4

22

20.8

Shot Volume (cm3)

1964.7

2218

2486.8

Injection Pressure (Mpa)

168

148.8

132.7

Screw Speed (rpm)

171

Shot Weight (g)

1788

2018

2263

Shot Weigh (oz)

63.07

71.18

79.83

CLAMPING UNIT

Clamping Force (Kn)

5300

Toggle Stroke (mm)

840

Space Between Tie Bars (mm)

820*800

Max.mould Height (mm)

800

Min.mould Height (mm)

290

Ejector Stroke(mm)

225

Ejector Force(Kn)

152

Ejector Number

12+1

 Die Hole Diameter (mm)

200

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

45

Heating Power (Kw)

38.3

Oil Tank Cubage (L)

900

Machine Weight (Ton)

20

Boundary Dimension (m)

8.6*2.3*3



Servo Driver Capacity (Kw)

30+45



Platen Dimensions



Platen Dimensions

Specifications

U610TS

Internationally Recognized Model

4260

Injection Unit

A

B

C

Injection Unit

Screw Diameter (mm)

85

90

95

Screw L/D Ratio (L/D)

23.3

22

20.8

Shot Volume (cm3)

2388

2678

2983

Injection Pressure (Mpa)

178.3

159

142.7

Screw Speed (rpm)

126

Shot Weight (g)

2174

2437

2715

Shot Weigh (oz)

76.686

85.963

95.769

Clamping Unit

Clamping Force (Kn)

6100

Toggle Stroke (mm)

850

Space Between Tie Bars (mm)

865*830

Max.mould Height (mm)

850

Min.mould Height (mm)

300

Ejector Stroke (mm)

225

Ejector Force (Kn)

152

Ejector Number

12+1

Die Hole Diameter (mm)

200

Others

Systerm Pressure (Mpa)

16

Heating Power (Kw)

55

Heating Power (Kw)

42

Oil Tank Cubage (L)

1000

Machine Weight (Ton)

25

Boundary Dimension (m)

9*2.3*3.1

Servo Driver Capacity (Kw)

30+45

Platen Dimensions


Platen Dimensions
