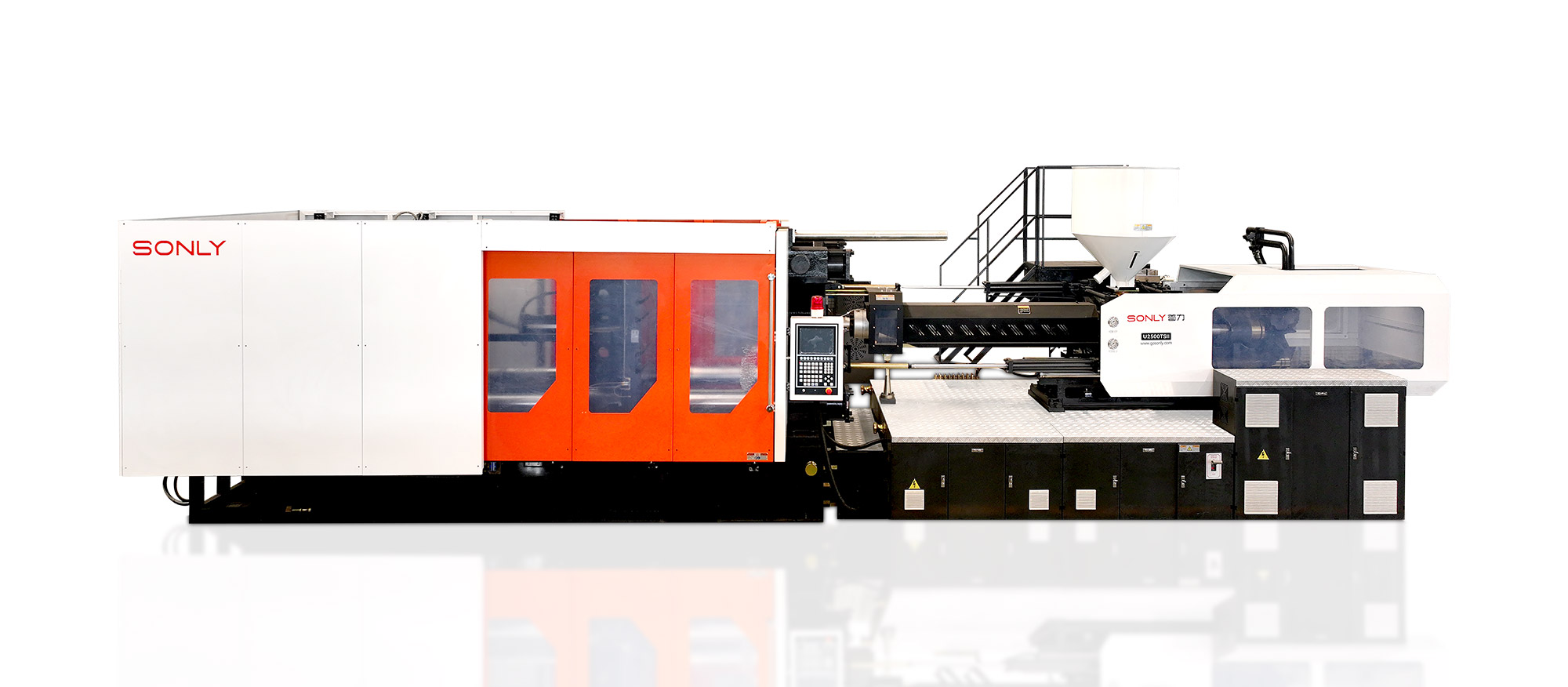

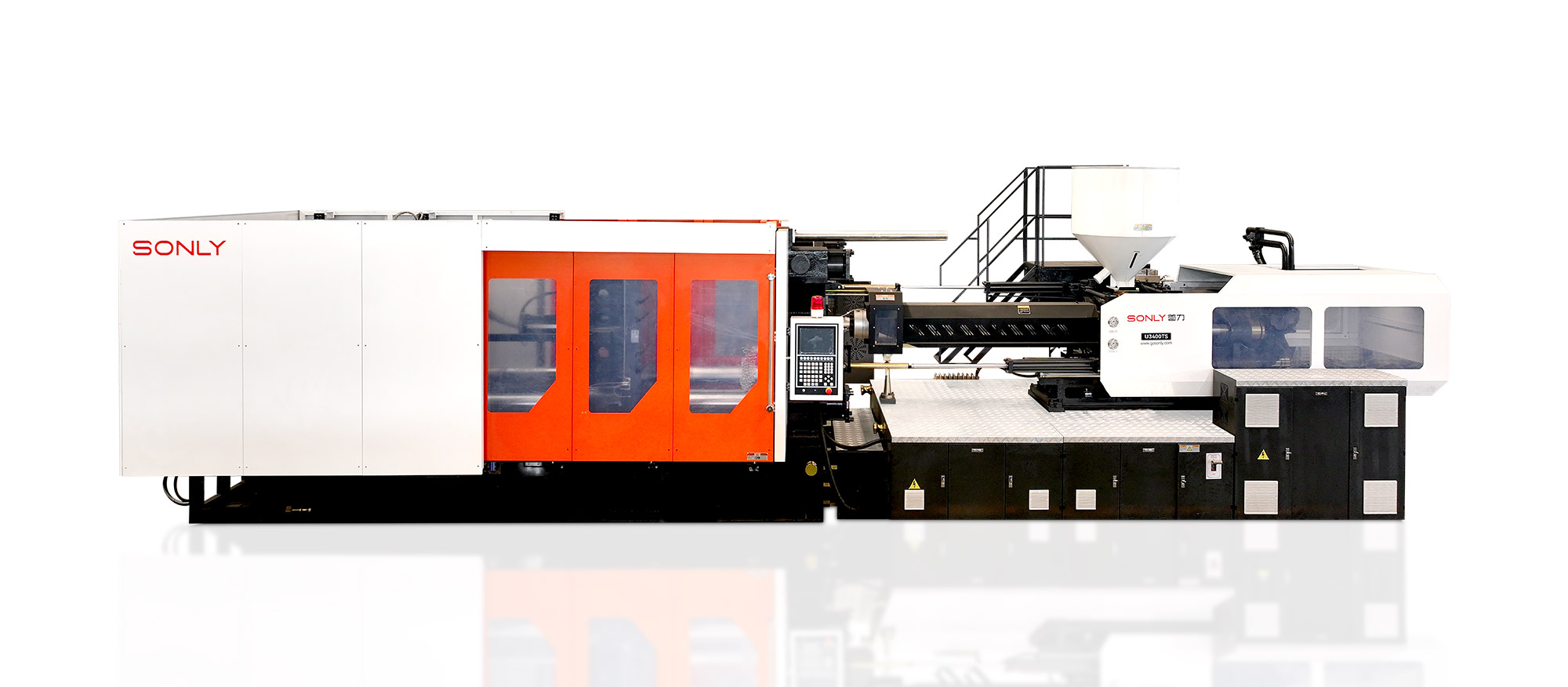

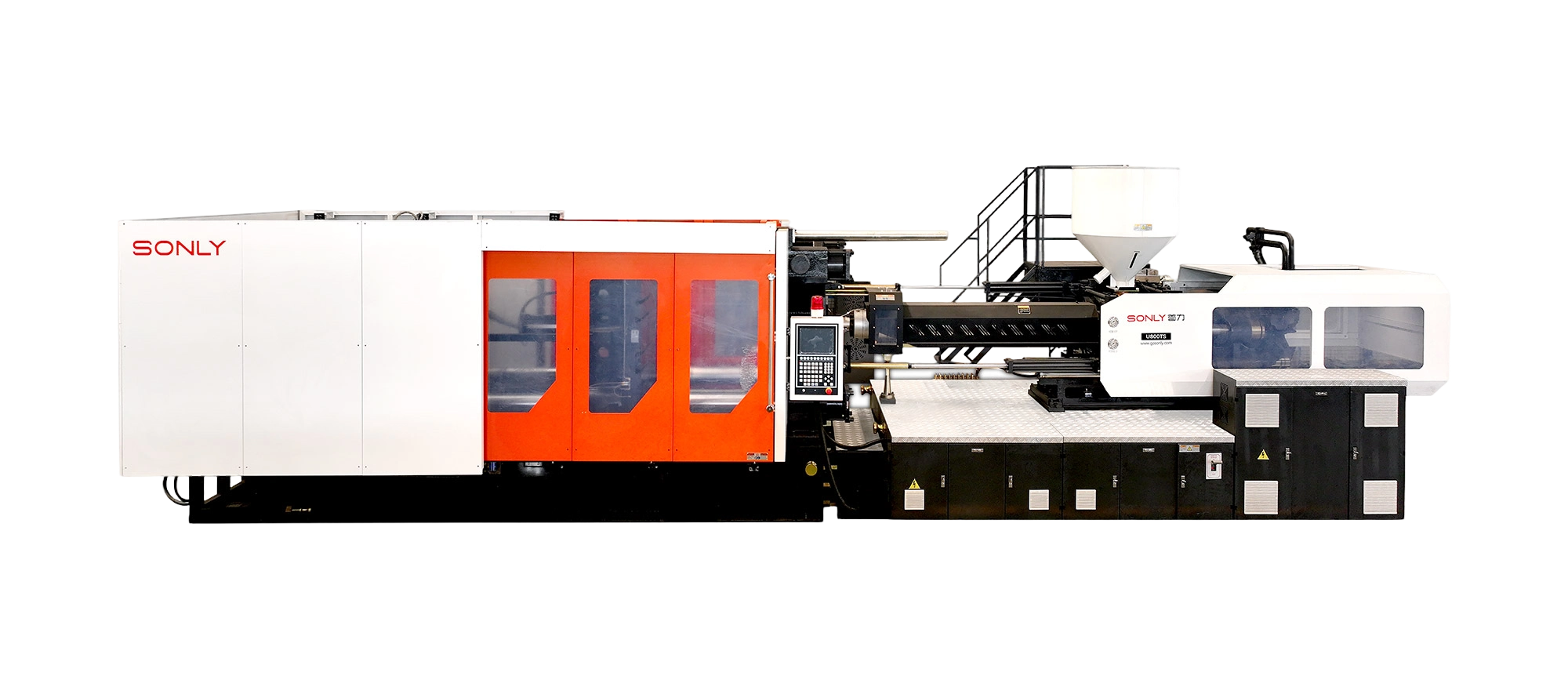

U680TS-U3400TS

1.Complete models
Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules to meet various individual needs and cost-effective.

2.High repeatability
With more than 20 years of practical experience in research and development of plastic machines, using servo system, which is stable and fast, high efficiency and energy saving, low noise, high repeatability.
Contact Us Download Brochure

Zhejiang Sonly Intelligent Equipment Co.,ltd

1.Sonly is focusing on injection molding machine since it is established, according to various individual needs of clients, SONLY elaborately creates 28 machine models from 98 to 3400 tons, finally they become the ideal choice in the market.

2.Sonly injection molding machine has large screw L/D ratio, fast plasticizing speed, short cycle time and strong plasticizing capacity, to grantee the whole machine works with high efficiency.

3.SONLY creates new siamesed structure, stable and reliable servo system and high quality components, which to insure machine performance stability and accuracy.

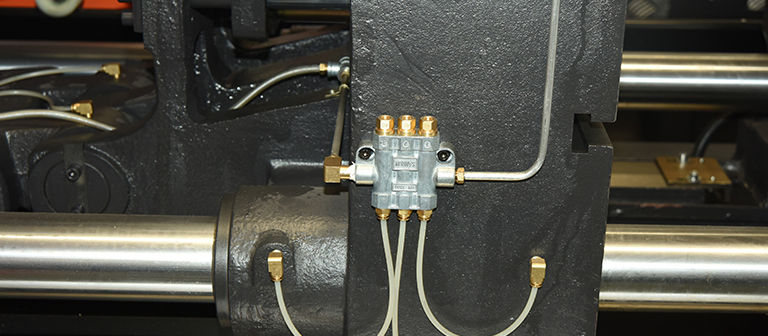

4.SONLY injection molding machine adopts high quality servo motor system to lower power consumption. Multiple optimized oil circuit reduce the movement resistance and power consumption also. The whole machine works with stable function, convenient operation and automatic monitoring.

5.Compared the same model with others, we have a bigger tie bar space, injection volume and open stroke, which means can produce bigger plastic products to get high cost performance.

6.Arched plate design can protect mold effectively. Especially when the tie bar space is big but mold is small.

7.The bridge designed injection seat ensure smooth and precise injection repetition.

8.All frames are analyzed by special software, the rigidity is good and force bearing type is reasonable.

Specifications

U680TS

U780TS

U1080TS

U1400TS

U1680TS

Internationally Recognized Model

4958

6716

8924

11573

14366

Injection Unit

A

B

C

D

A

B

C

D

A

B

C

D

A

B

C

D

A

B

C

D

Injection Unit

Screw Diameter (mm)

90

95

100

110

90

100

110

120

100

110

120

130

110

120

130

140

120

130

140

150
Screw L/D Ratio (L/D)

23.2

22

20.9

20.9

24.4

22

20

18.3

24.2

22

20.2

18.6

24

22

20.3

18.9

23.8

22

20.4

19.1

Shot Volume (cm3)

2816

3138

3477

3477

2956

3650

4416

5256

4238

5129

6103

7163

5654

6729

7897

9158

7476

8760

10159

11662

Injection Pressure (Mpa)

176

158

142.6

142.6

227.2

184

152.21

127.8

210.5

174

146.2

124.6

204.7

172

146.6

126.4

192.5

164

141.4

123.2

Screw Speed (rpm)

105

91

96

96

90

Shot Weight (g)

2562

2855

3164

3828

2689

3321

4018

4782

3856

4667

5553

6518

5145

6123

7186

8335

6792

7972

9245

10613

Shot Weigh (oz)

90.41

100.73

111.61

135.06

94.89

117.18

141.77

168.72

136.05

164.62

195.95

229.95

181.49

215.98

253.4

294

239.58

281.20

326.11

374.37



Clamping Force (Kn)

6800

7800

10800

14000

16800

Toggle Stroke (mm)

930

1000

1220

1400

1600

Space Between Tie Bars (mm)

915*915

985*985

1160*1160

1350*1300

1555*1430

Max.mould Height (mm)

900

1000

1250

1300

1500

Min.mould Height (mm)

320

350

480

530

380

Ejector Stroke (mm)

265

265

350

350

400

Ejector Force (Kn)

212

212

246

246

363

Ejector Number

16+1

20+1

20+1

20+1

28+1

 Die Hole Diameter (mm)

200

250

250

250

315

Others

Systerm Pressure (Mpa)

16

16

16

16

16

Ordinary Motor Power (Kw)

30+37

37+37

45+45

55+55

45+45+45

Heating Power (Kw)

60

70

90

97

118

Oil Tank Cubage (L)

1200

1400

1700

2200

2000

Machine Weight (Ton)

8+25

10+30

13+41

18+47

19+86

Boundary Dimension (m)

5*2.3+3.1

6.8*2.5*2.5

5*2.3*3.1

7.6*2.75*2.6

5.4*2.65*3.3

8.1*2.9*2.8

6.5*2.65*3.7

9.2*3.1*2.8

7*2.6*4.03

10.3*3.75*3.1

Servo Driver Capacity (Kw)

37+45

45+45

37+37+37

37+45+45

37+37+45+45

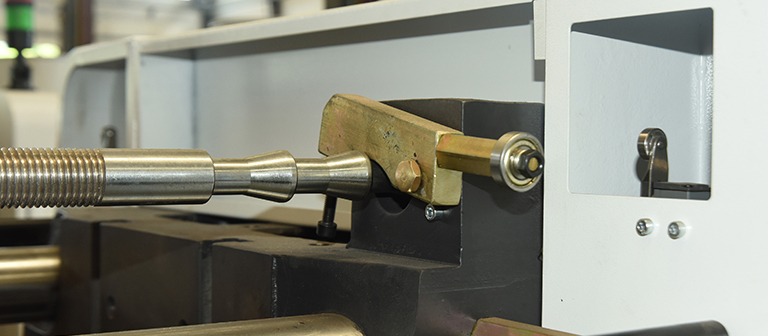

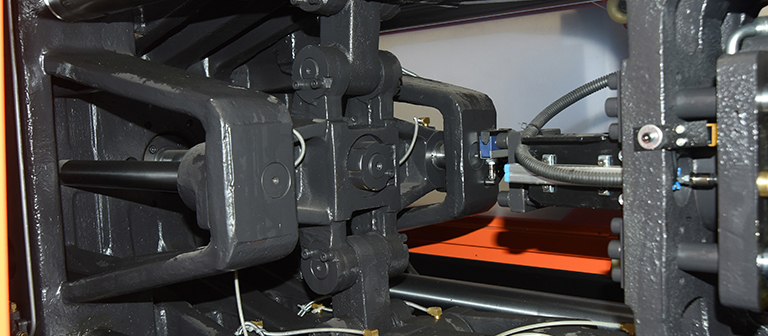

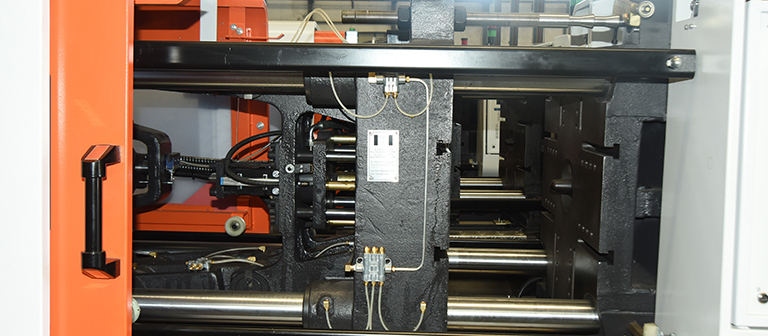

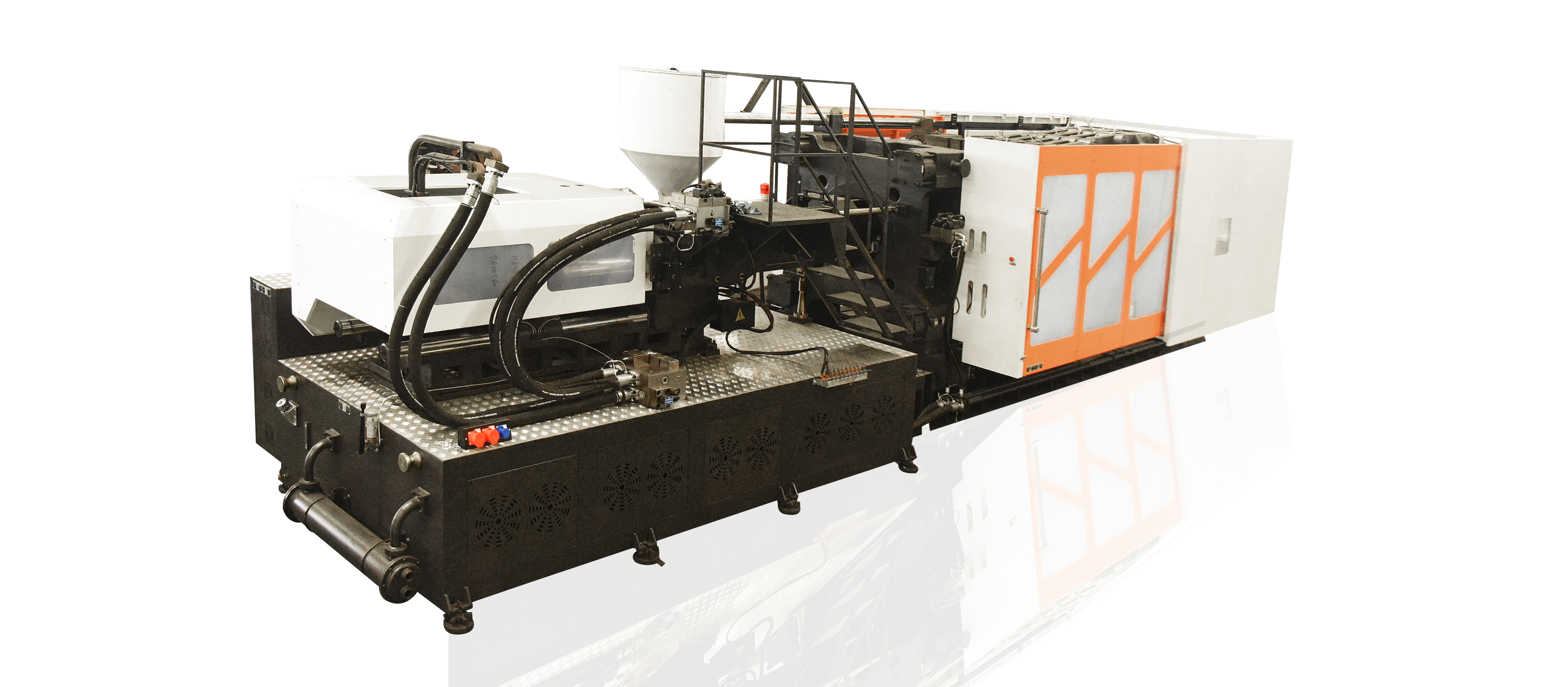

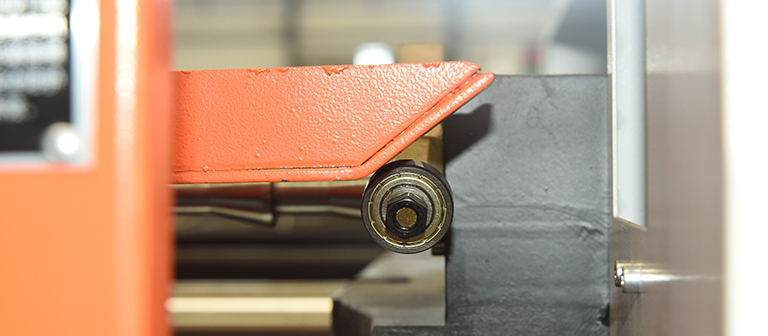

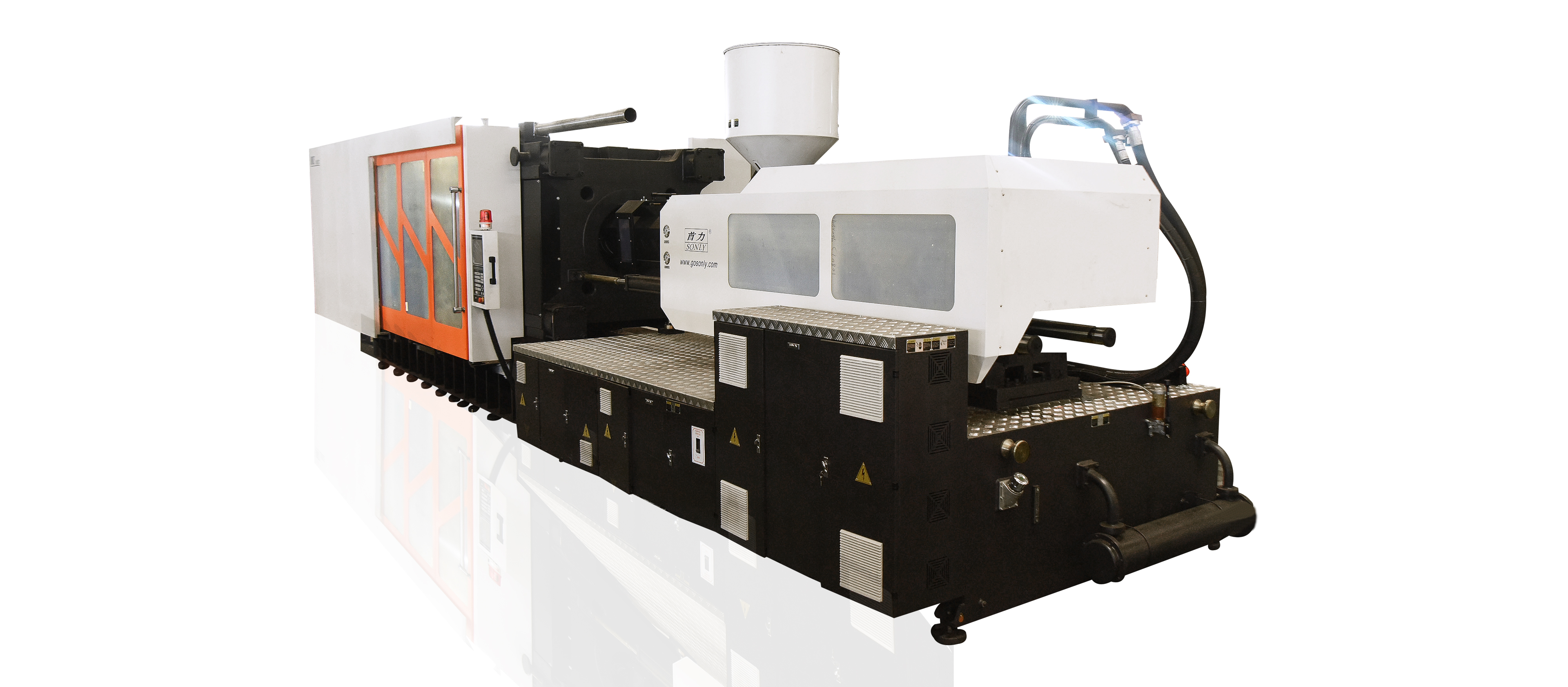

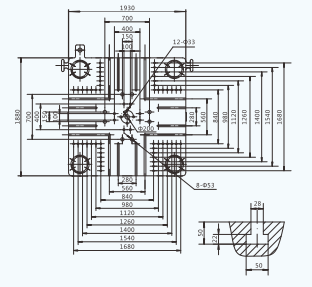

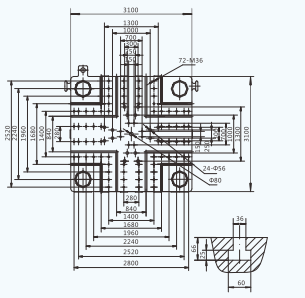

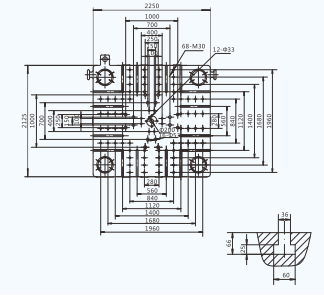

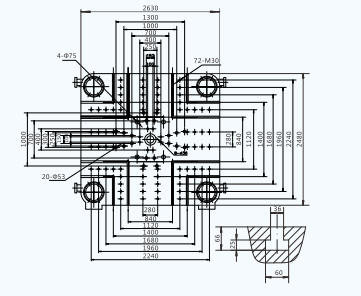

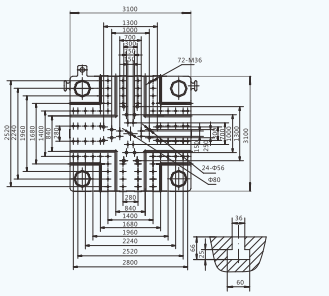

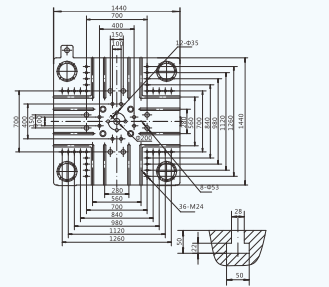

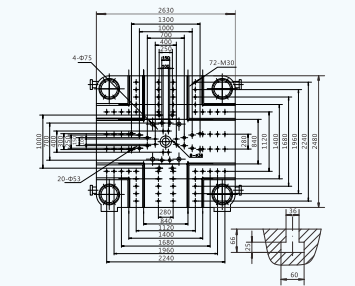

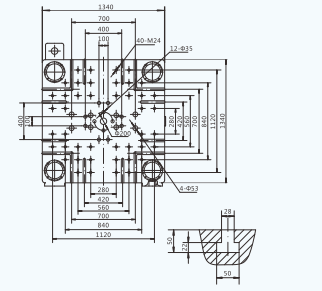

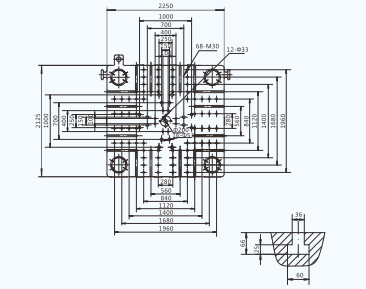

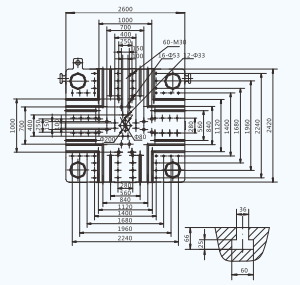

Platen Dimensions











Platen Dimensions











Specifications

U1900TS

U2400TS

U2600TS

U2800TS

U3400TS

U3400TS

Internationally Recognized Model

18448

19563

48105

59392

63000I

78400II

Injection Unit

A

B

C

D

A

B

C

D

A

A

B

C

D

A

A

Injection Unit

Screw Diameter (mm)

130

140

150

160

130

140

150

160

170

170

185

200

210

220

240

Screw L/D Ratio (L/D)

23.7

22

20.5

19.3

23.7

22

20.5

19.3

23.9

23.9

22

20.4

19.4

22

22

Shot Volume (cm3)

11281.6

13084

15019.99

17089.3

9949.4

11539

13246.3

15071.3

26102

32231.2

38170

44610.7

49183.3

45000

56000

Injection Pressure (Mpa)

163.5

141

122.8

108

196.9

169.8

147.9

130

184.3

184.3

155.6

133.1

120.8

140

140

Screw Speed (rpm)

 88

60

70

70

45

45

Shot Weight (g)

10266

11906

13668

15551

9054

10500

12054

13715

23753

29330

34735

40596

44757

40950

50960

Shot Weigh (oz)

362.123

419.972

482.125

548.546

319.371

370.377

425.193

483.783

837.863

1034.586

1225.242

1431.983

1578.758

1444.47

1797.563

Clamping Unit

Clamping Force (Kn)

 19000

24000

26000

28000

34000

34000

Toggle Stroke (mm)

1950

1910

1870

1870

2020

2020

Space Between Tie Bars (mm)

1720*1520

1800*1620

1860*1710



1900*1800

2160*1900

2160*1900

Max.mould Height (mm)

 1500

1700

1850

1850

1950

1950

Min.mould Height (mm)

680

700

750

750

780

780

Ejector Stroke (mm)

400

500

500

500

520

520

Ejector Force (Kn)

363

490

565

565

830

830

Ejector Number

 28+1

28+1

32+1

32+1

32+1

32+1

Die Hole Diameter (mm)

315

837.863

315

315

315

315

 Others

Systerm Pressure (Mpa)

16

16

16

16

16

16

Ordinary Motor Power (Kw)

45+55+55

45+55+55

220

220

55+55+55+55+55

55+55+55+55+55

Heating Power (Kw)

118

140

180

180

220

220

Oil Tank Cubage (L)

2000

3000

3800

3800

5200

5200

Machine Weight (Ton)

24+96

26+130

43+133

43+150

230

230

Boundary Dimension (m)

7.3*2.8*3.4

11.3*3.7*3.5

8*3.1*4.1

13*4.1*3.5

9.5*3.3*4.2

13.4.3*3.55

9.5*3.3*4.2

13*4.4*3.7

10.5*3.6*5.0

17*5.2*4.2

12*3.6*5.0

17*5.2*5.2

Servo Driver Capacity (Kw)

45+45+45+45

55*4

55*4

55*4

55*6

55*6

Platen Dimensions











Platen Dimensions











Application

Housewear & Furnishings
Housewear & Furnishings
Housewear & Furnishings
Housewear & Furnishings
Urban Construction
Urban Construction
Urban Construction
Urban Construction
Other
Other
Other
Other
Auto Parts
Auto Parts
Auto Parts
Auto Parts
Daily Necessities
Daily Necessities
Environment Protection
Environment Protection
Electronics
Electronics
Medical Care
Medical Care
