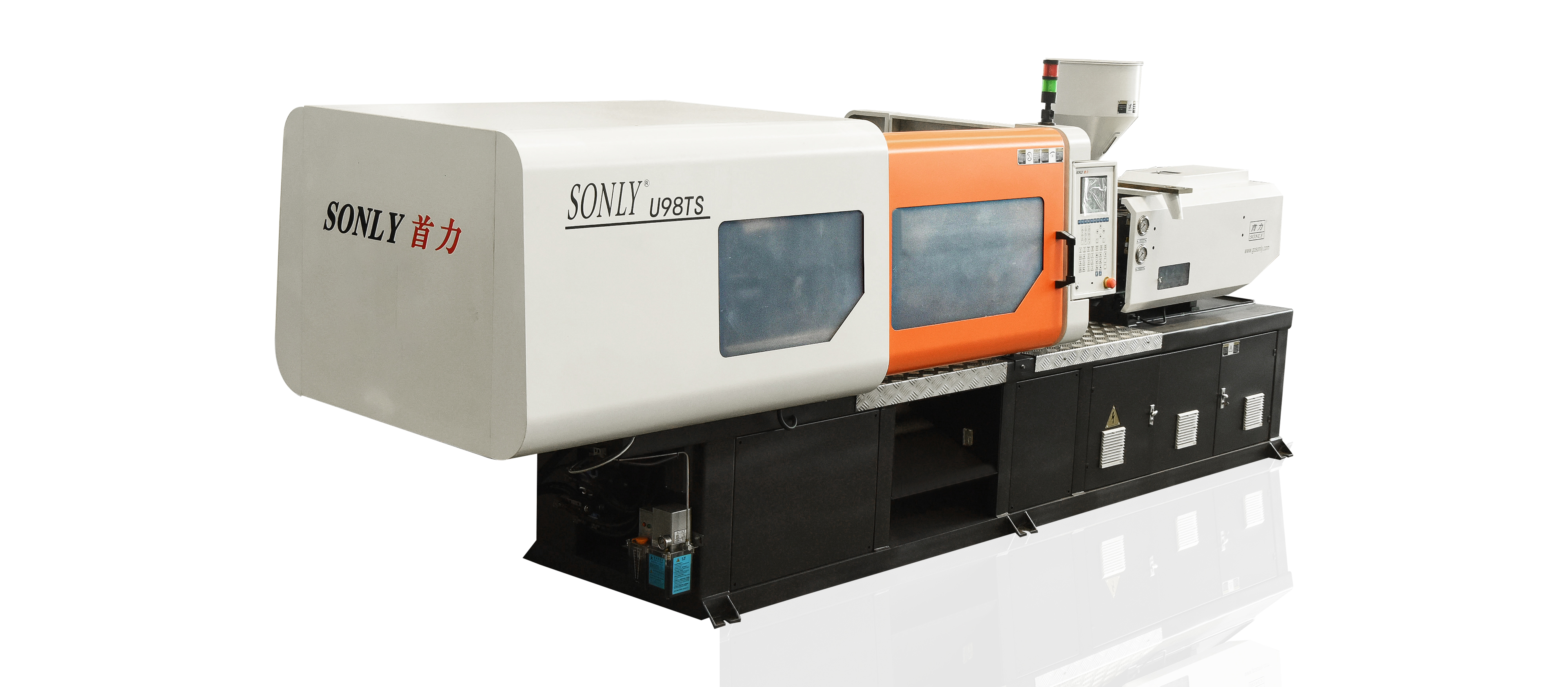

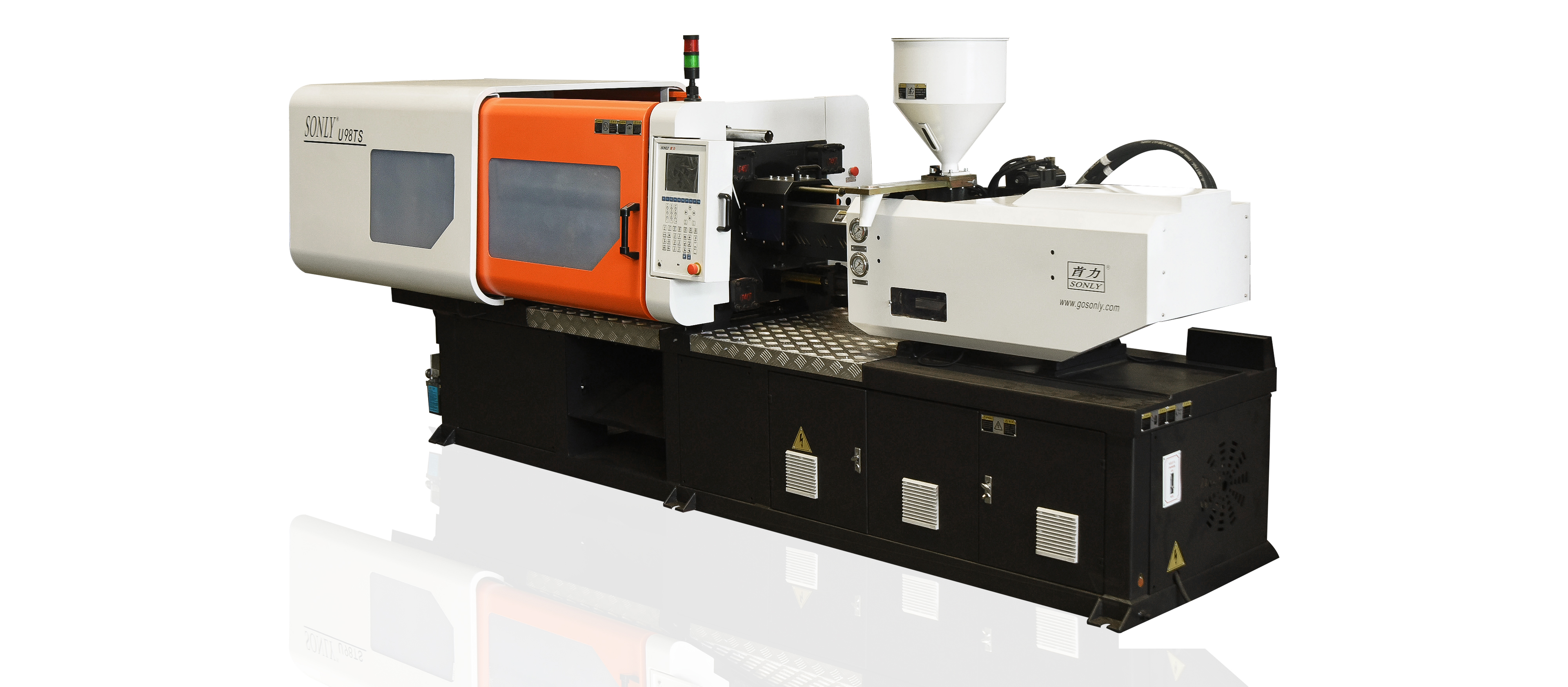

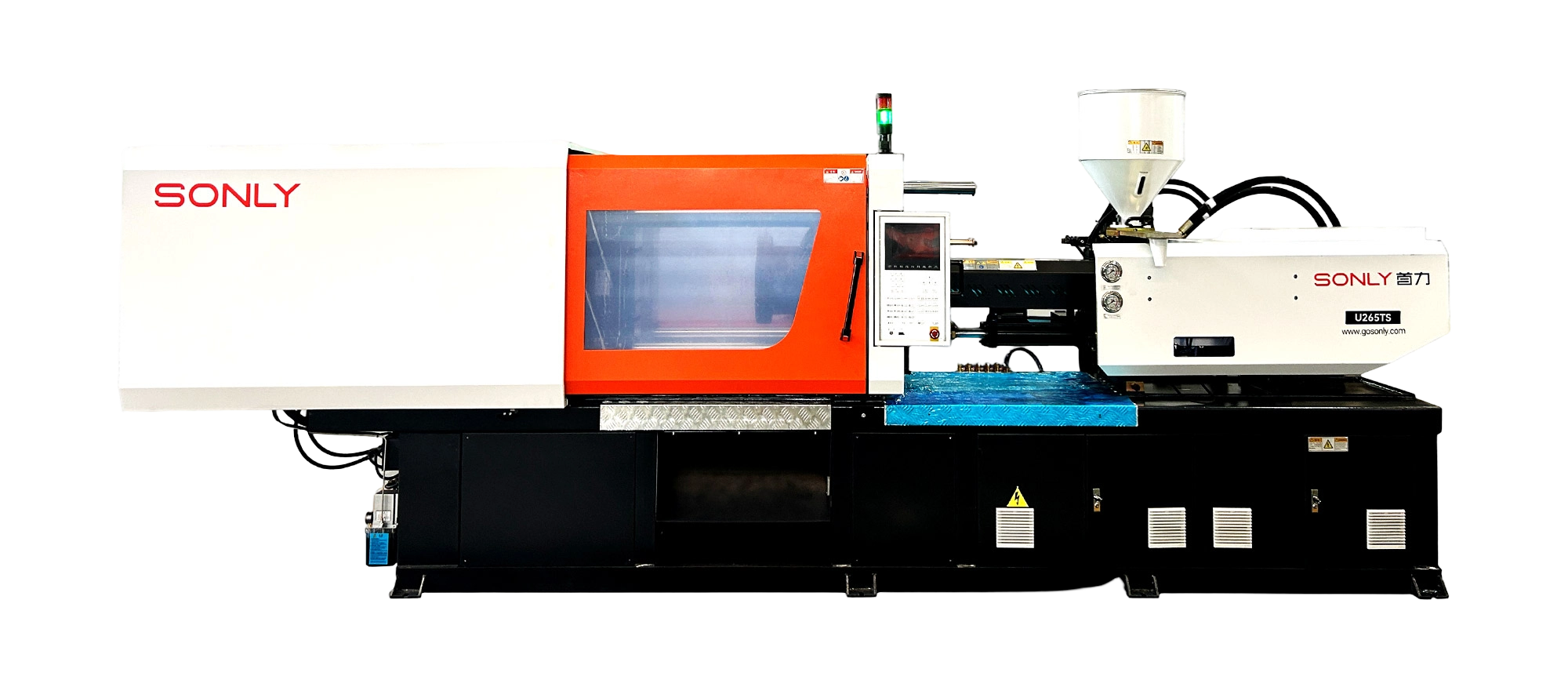

U98TS-U300TS

1.Complete models
Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules to meet various individual needs and cost-effective.

2.High repeatability
With more than 20 years of practical experience in research and development of plastic machines, using servo system, which is stable and fast, high efficiency and energy saving, low noise, high repeatability.


Contact Us

Zhejiang Sonly Intelligent Equipment Co.,ltd

1.Sonly is focusing on injection molding machine since it is established, according to various individual needs of clients, SONLY elaborately creates 28 machine models from 98 to 3400 tons, finally they become the ideal choice in the market.

2.Sonly injection molding machine has large screw L/D ratio, fast plasticizing speed, short cycle time and strong plasticizing capacity, to grantee the whole machine works with high efficiency.

3.SONLY creates new siamesed structure, stable and reliable servo system and high quality components, which to insure machine performance stability and accuracy.

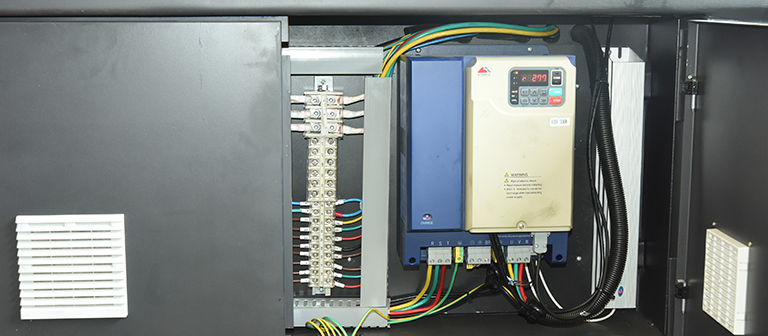

4.SONLY injection molding machine adopts high quality servo motor system to lower power consumption. Multiple optimized oil circuit reduce the movement resistance and power consumption also. The whole machine works with stable function, convenient operation and automatic monitoring.

5.Compared the same model with others, we have a bigger tie bar space, injection volume and open stroke, which means can produce bigger plastic products to get high cost performance.

6.Arched plate design can protect mold effectively. Especially when the tie bar space is big but mold is small.

7.The bridge designed injection seat ensure smooth and precise injection repetition.

8.All frames are analyzed by special software, the rigidity is good and force bearing type is reasonable.

Specifications

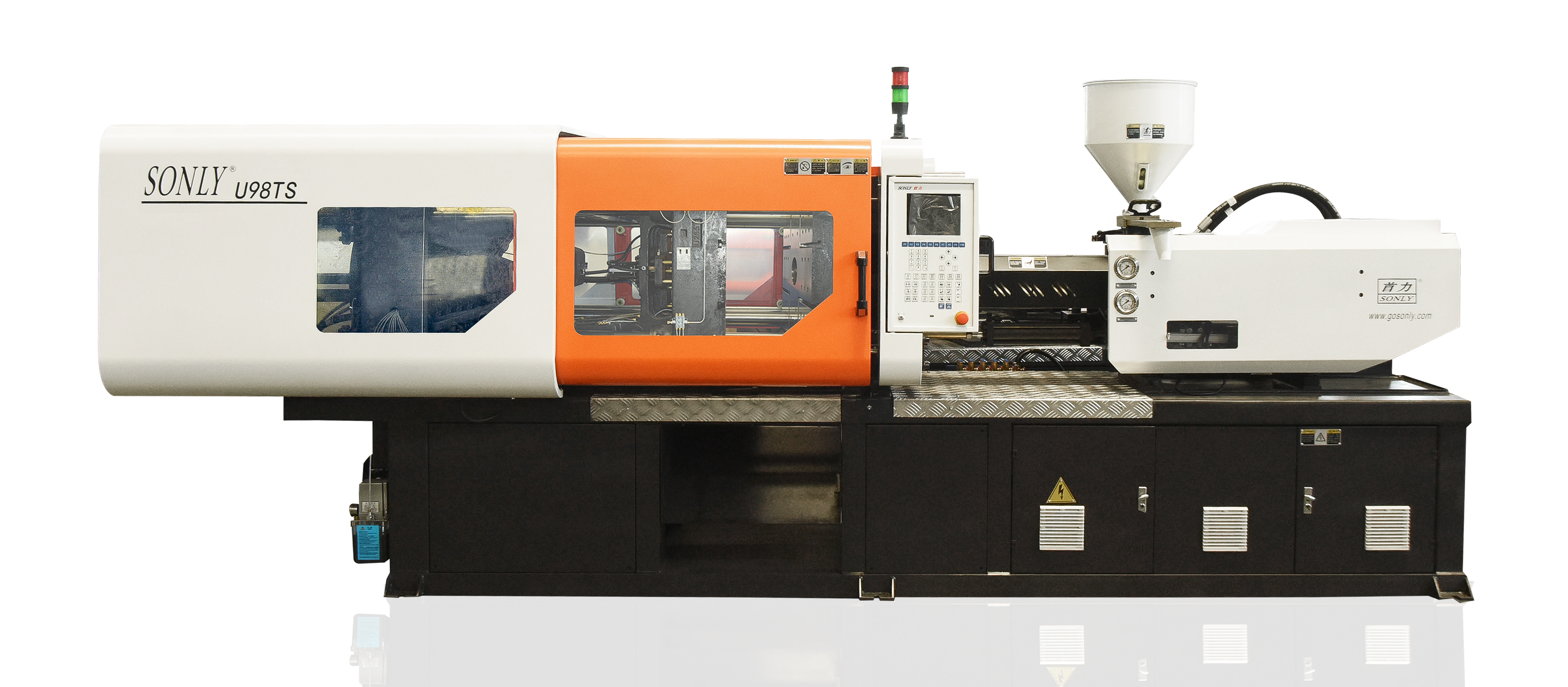

U98TS

Internationally Recognized Model

310

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

32

35

38

Screw L/D Ratio (L/D)

24.1

22

20.3

Shot Volume (cm3)

133.7

160.6

188.6

Injection Pressure (Mpa)

232.1

194

164.6

Screw Speed (rpm)

210

Shot Weight (g)

122

146

172

Shot Weigh (oz)

4.30

5.15

6.07

CLAMPING UNIT

Clamping Force (Kn)

980

Toggle Stroke (mm)

320

Space Between Tie Bars (mm)

365*360

Max.mould Height (mm)

360

Min.mould Height (mm)

120

Ejector Stroke（mm）

100

Ejector Force（Kn）

38

Ejector Number

4+1

 Die Hole Diameter (mm)

125

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

9

Heating Power (Kw)

10

Oil Tank Cubage (L)

125

Machine Weight (Ton)

2.8

Boundary Dimension (m)

4.34*1.24*1.85

Servo Driver Capacity (Kw)

11

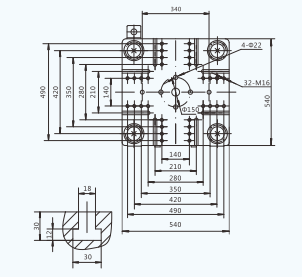

Platen Dimensions

Platen Dimensions

Specifications

U118TS

Internationally Recognized Model

400

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

35

38

40

Screw L/D Ratio (L/D)

23.9

22

20.9

Shot Volume (cm3)

182.4

215

238.2

Injection Pressure (Mpa)

219.3

186

167.9

Screw Speed (rpm)

199

Shot Weight (g)

166

196

217

Shot Weigh (oz)

5.86

6.91

7.65

CLAMPING UNIT

Clamping Force (Kn)

1180

Toggle Stroke (mm)

350

Space Between Tie Bars (mm)

380*380

Max.mould Height (mm)

430

Min.mould Height (mm)

140

Ejector Stroke（mm）

110

Ejector Force（Kn）

38

Ejector Number

4+1

 Die Hole Diameter (mm)

125

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

11

Heating Power (Kw)

12.7

Oil Tank Cubage (L)

150

Machine Weight (Ton)

3.4

Boundary Dimension (m)

4.74*1.3*1.85

Servo Driver Capacity (Kw)

15

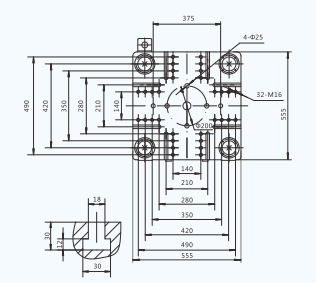

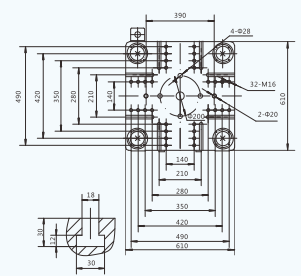

Platen Dimensions

Platen Dimensions

Specifications

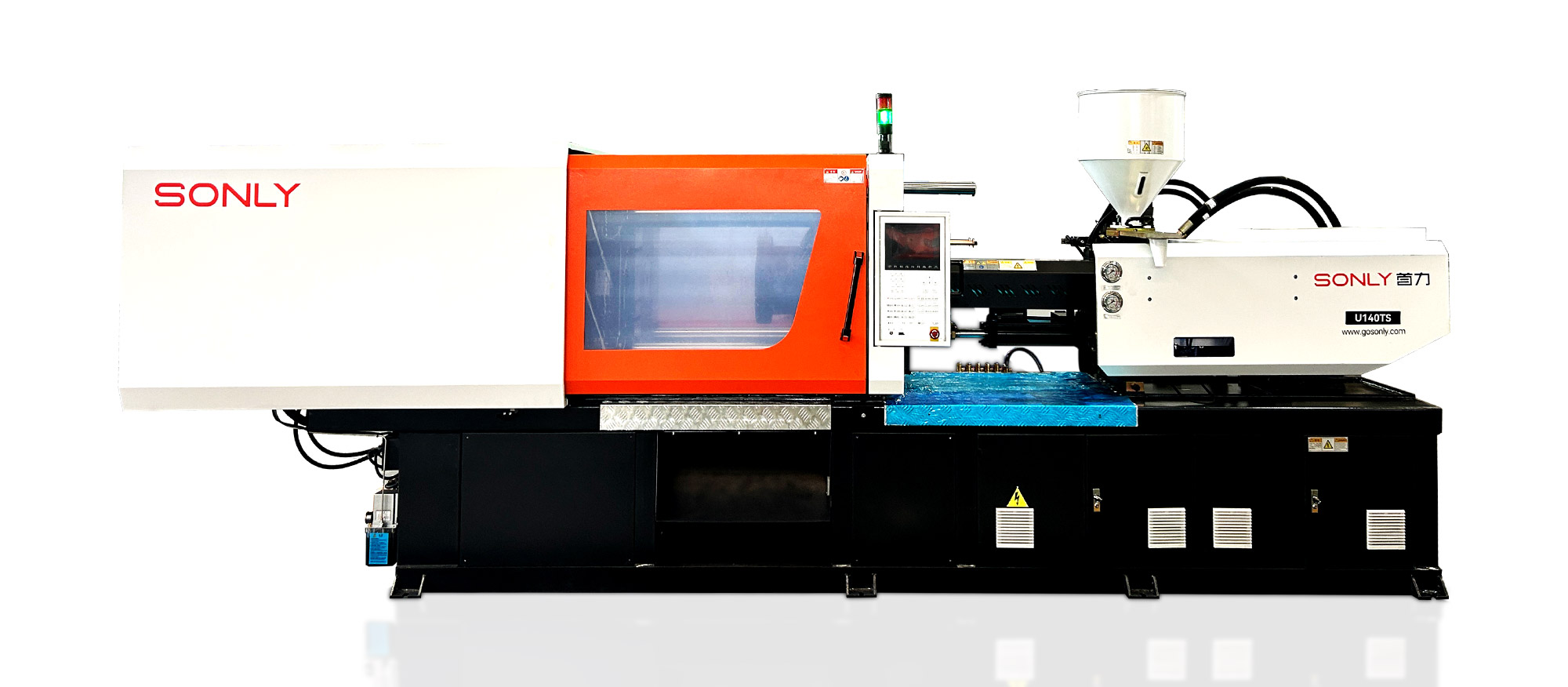

U140TS

Internationally Recognized Model

430

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

38

40

45

Screw L/D Ratio (L/D)

23.2

22

19.6

Shot Volume (cm3)

214.8

238

301.2

Injection Pressure (Mpa)

199.4

180

142.2

Screw Speed (rpm)

200

Shot Weight (g)

195

217

274

Shot Weigh (oz)

6.88

7.65

9.67

CLAMPING UNIT

Clamping Force (Kn)

1400

Toggle Stroke (mm)

380

Space Between Tie Bars (mm)

420*420

Max.mould Height (mm)

440

Min.mould Height (mm)

140

Ejector Stroke（mm）

115

Ejector Force（Kn）

38

Ejector Number

4+1

 Die Hole Diameter (mm)

125

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

13

Heating Power (Kw)

12.7

Oil Tank Cubage (L)

170

Machine Weight (Ton)

3.9

Boundary Dimension (m)

4.8*1.35*1.85

Servo Driver Capacity (Kw)

18

Platen Dimensions

Platen Dimensions

Specifications

U158TS

Internationally Recognized Model

550

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

40

42

45

Screw L/D Ratio (L/D)

23.1

22

20.5

Shot Volume (cm3)

288.4

318

365.1

Injection Pressure (Mpa)

191.8

174

151.6

Screw Speed (rpm)

208

Shot Weight (g)

262

289

332

Shot Weigh (oz)

9.24

10.19

11.71

CLAMPING UNIT

Clamping Force (Kn)

1580

Toggle Stroke (mm)

395

Space Between Tie Bars (mm)

430*430

Max.mould Height (mm)

450

Min.mould Height (mm)

140

Ejector Stroke（mm）

115

Ejector Force（Kn）

38

Ejector Number

4+1

 Die Hole Diameter (mm)

125

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

15

Heating Power (Kw)

13.2

Oil Tank Cubage (L)

200

Machine Weight (Ton)

4.5

Boundary Dimension (m)

5.1*1.35*2.02

Servo Driver Capacity (Kw)

22

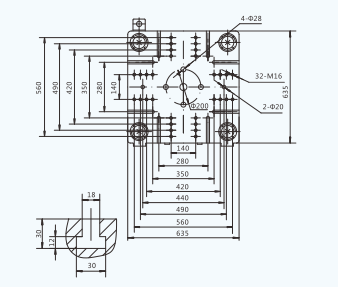

Platen Dimensions

Platen Dimensions

Specifications

U168TS

Internationally Recognized Model

600

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

40

45

48

Screw L/D Ratio (L/D)

24.8

22

20.6

Shot Volume (cm3)

313.7

397

451.7

Injection Pressure (Mpa)

191.1

151

132.7

Screw Speed (rpm)

208

Shot Weight (g)

285

361

411

Shot Weigh (oz)

10.05

12.73

14.50

CLAMPING UNIT

Clamping Force (Kn)

1680

Toggle Stroke (mm)

425

Space Between Tie Bars (mm)

467*467

Max.mould Height (mm)

500

Min.mould Height (mm)

170

Ejector Stroke（mm）

130

Ejector Force（Kn）

38

Ejector Number

4+1

 Die Hole Diameter (mm)

125

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

15

Heating Power (Kw)

13.2

Oil Tank Cubage (L)

210

Machine Weight (Ton)

5

Boundary Dimension (m)

5.4*1.4*2.03

Servo Driver Capacity (Kw)

22

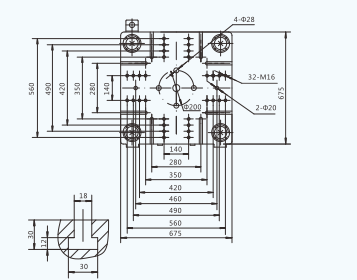

Platen Dimensions

Platen Dimensions

Specifications

U178TS

Internationally Recognized Model

900

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

45

48

55

Screw L/D Ratio (L/D)

23.5

22

19.2

Shot Volume (cm3)

397.3

452

593.4

Injection Pressure (Mpa)

227.6

200

152.3

Screw Speed (rpm)

196

Shot Weight (g)

362

411

540

Shot Weight (oz)

12.77

14.50

19.05



Clamping Force (Kn)

1780

Toggle Stroke (mm)

450

Space Between Tie Bars (mm)

485*465

Max.mould Height (mm)

520

Min.mould Height (mm)

180

Ejector Stroke (mm)

130

Ejector Force (Kn)

70

Ejector Number

4+1

 Die Hole Diameter (mm)

160

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

18.5

Heating Power (Kw)

16.3

Oil Tank Cubage (L)

220

Machine Weight (Ton)

6

Boundary Dimension (m)

5.6*1.43*2.1

Servo Driver Capacity (Kw)

22

 Platen Dimensions



Platen Dimensions



Specifications

U218TS

Internationally Recognized Model

1067

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

45

50

55

Screw L/D Ratio (L/D)

24.4

22

20

Shot Volume (cm3)

460

569

688

Injection Pressure (Mpa)

227.5

184.3

152.3

Screw Speed (rpm)

180

Shot Weight (g)

419

518

627

Shot Weight (oz)

14.78

18.27

22.11



Clamping Force (Kn)

2180

Toggle Stroke (mm)

500

Space Between Tie Bars (mm)

510*510

Max.mould Height (mm)

530

Min.mould Height (mm)

200

Ejector Stroke (mm)

150

Ejector Force (Kn)

70

Ejector Number

8+1

 Die Hole Diameter (mm)

160

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

18.5

Heating Power (Kw)

16.3

Oil Tank Cubage (L)

230

Machine Weight (Ton)

7

Boundary Dimension (m)

6.2*1.47*2.2

Servo Driver Capacity (Kw)

22

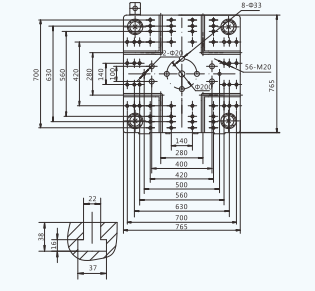

 Platen Dimensions



Platen Dimensions



Specifications

U238TS

Internationally Recognized Model

1094

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

55

60

65

Screw L/D Ratio (L/D)

24

22

20.3

Shot Volume (cm3)

593.2

706

828.6

Injection Pressure (Mpa)

184.5

155

132.1

Screw Speed (rpm)

160

Shot Weight (g)

540

642

754

Shot Weight (oz)

19.05

22.64

26.60



Clamping Force (Kn)

2380

Toggle Stroke (mm)

520

Space Between Tie Bars (mm)

530*530

Max.mould Height (mm)

580

Min.mould Height (mm)

200

Ejector Stroke (mm)

150

Ejector Force (Kn)

70

Ejector Number

8+1

 Die Hole Diameter (mm)

160

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

22

Heating Power (Kw)

24.7

Oil Tank Cubage (L)

240

Machine Weight (Ton)

8

Boundary Dimension (m)

6.2*1.5*2.3

Servo Driver Capacity (Kw)

30

 Platen Dimensions



Platen Dimensions



Specifications

U265TS

Internationally Recognized Model

1209

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

55

60

65

Screw L/D Ratio (L/D)

24

22

20.3

Shot Volume (cm3)

655.4

780

915.4

Injection Pressure (Mpa)

184.5

155

132.1

Screw Speed (rpm)

190

Shot Weight (g)

596

710

833

Shot Weight (oz)

21.02

25.05

29.38



Clamping Force (Kn)

2650

Toggle Stroke (mm)

560

Space Between Tie Bars (mm)

585*565

Max.mould Height (mm)

600

Min.mould Height (mm)

200

Ejector Stroke (mm)

150

Ejector Force (Kn)

70

Ejector Number

12+1

 Die Hole Diameter (mm)

160

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

22

Heating Power (Kw)

24.7

Oil Tank Cubage (L)

300

Machine Weight (Ton)

9

Boundary Dimension (m)

6.7*1.6*2.4

Servo Driver Capacity (Kw)

30

 Platen Dimensions



Platen Dimensions



Specifications

U300TS

Internationally Recognized Model

1685

Injection Unit

A

B

C

INJECTION UNIT

Screw Diameter (mm)

55

60

65

Screw L/D Ratio (L/D)

24

22

20.5

Shot Volume (cm3)

842.8

1003

1177.1

Injection Pressure (Mpa)

199.8

167.91

143.1

Screw Speed (rpm)

189

Shot Weight (g)

767

913

1071

Shot Weight (oz)

27.06

32.21

37.78



Clamping Force (Kn)

3000

Toggle Stroke (mm)

590

Space Between Tie Bars (mm)

610*585

Max.mould Height (mm)

640

Min.mould Height (mm)

200

Ejector Stroke (mm)

150

Ejector Force (Kn)

70

Ejector Number

12+1

 Die Hole Diameter (mm)

160

OTHERS

Systerm Pressure (Mpa)

16

Ordinary Motor Power (Kw)

30

Heating Power (Kw)

24.7

Oil Tank Cubage (L)

400

Machine Weight (Ton)

10

Boundary Dimension (m)

6.86*1.65*2.46

Servo Driver Capacity (Kw)

37

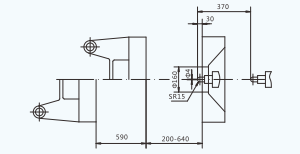

 Platen Dimensions



Platen Dimensions

Application

Housewear & Furnishings
Housewear & Furnishings
Housewear & Furnishings
Housewear & Furnishings
Urban Construction
Urban Construction
Urban Construction
Urban Construction
Other
Other
Other
Other
Auto Parts
Auto Parts
Auto Parts
Auto Parts
Daily Necessities
Daily Necessities
Environment Protection
Environment Protection
Electronics
Electronics
Medical Care
Medical Care
Zhejiang Sonly Intelligent Equipment Co., Ltd.

Official Website

Official WeChat


Quick Links

Products

News

Contact us

  • Phone: （+86）400-8120-669
                  +86-574-83876031
  • Email: sales@ouyilai.com
  • Address1: No. 288, Lingxu Road, Cixi Binhai Economic Development Zone, Ningbo City, Zhejiang Province, China.
  • Address2: Room905 9F, Zhenru International Center, No225 of Huancheng West Road, Haishu District, Ningbo City, Zhejiang Province, China.

Copyright © Zhejiang Sonly Intelligent Equipment Co., Ltd.All Rights Reserved.
