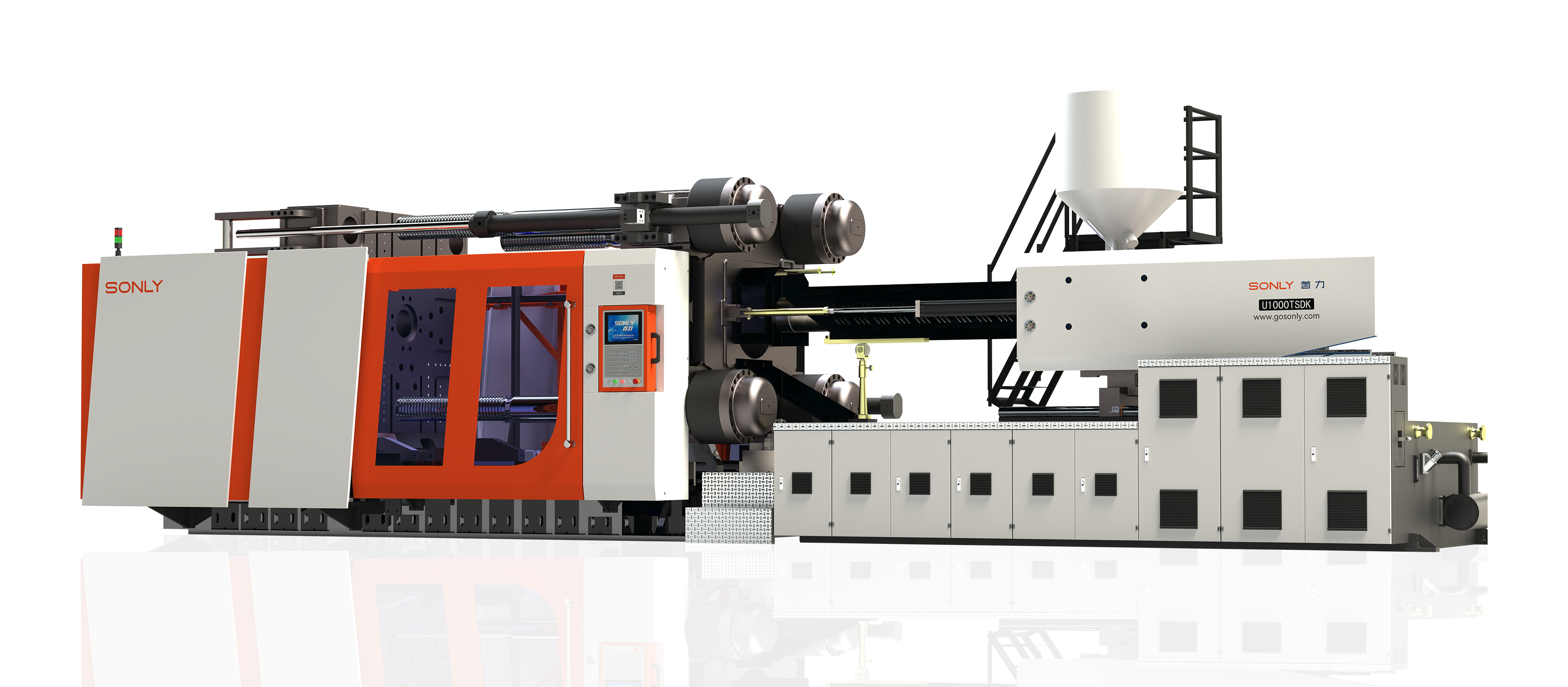

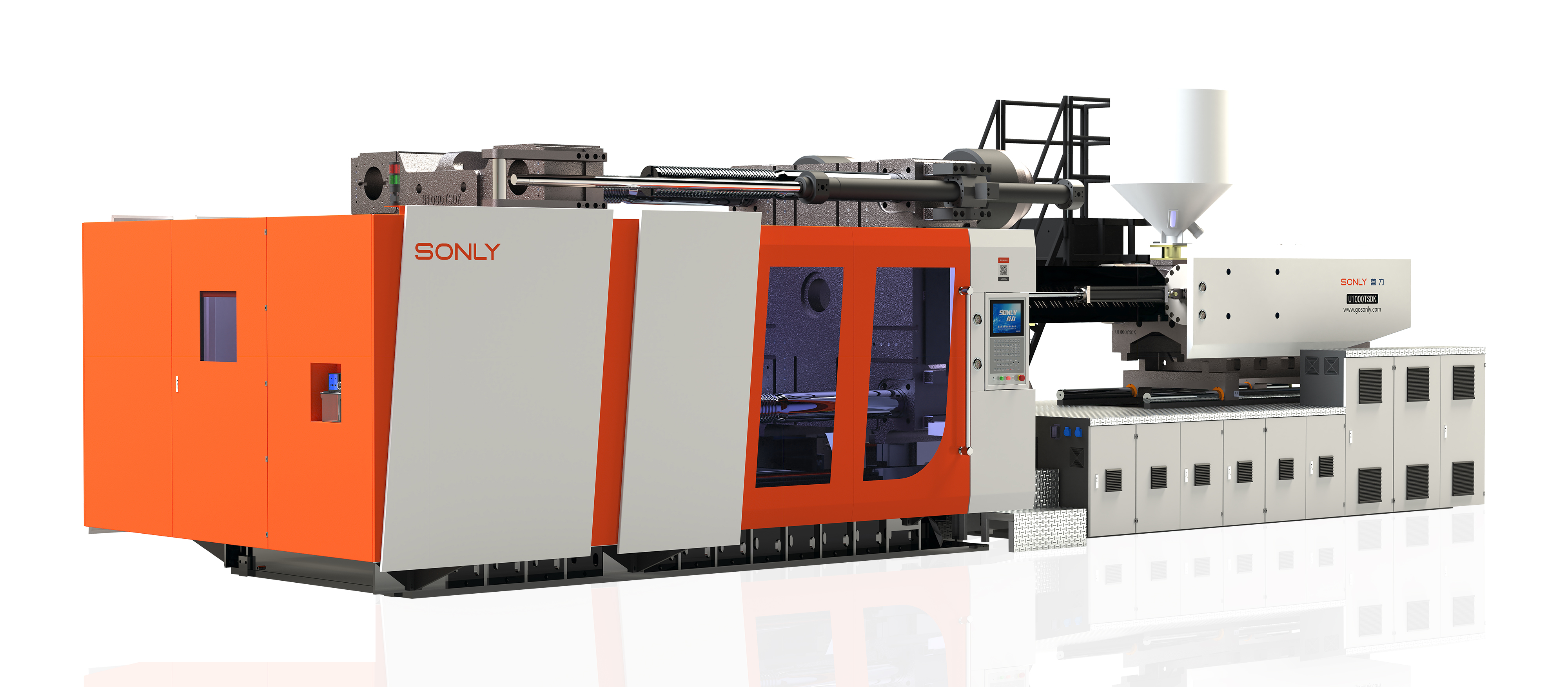

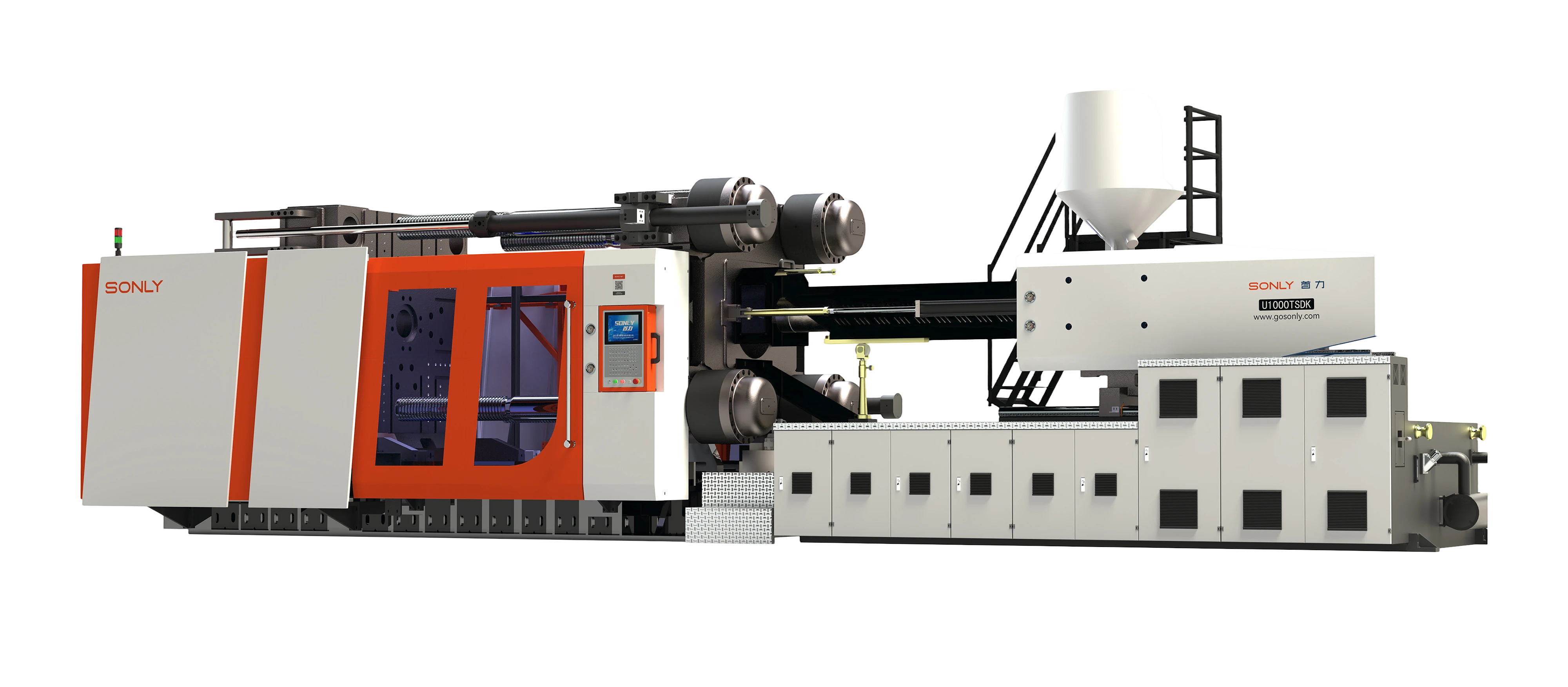

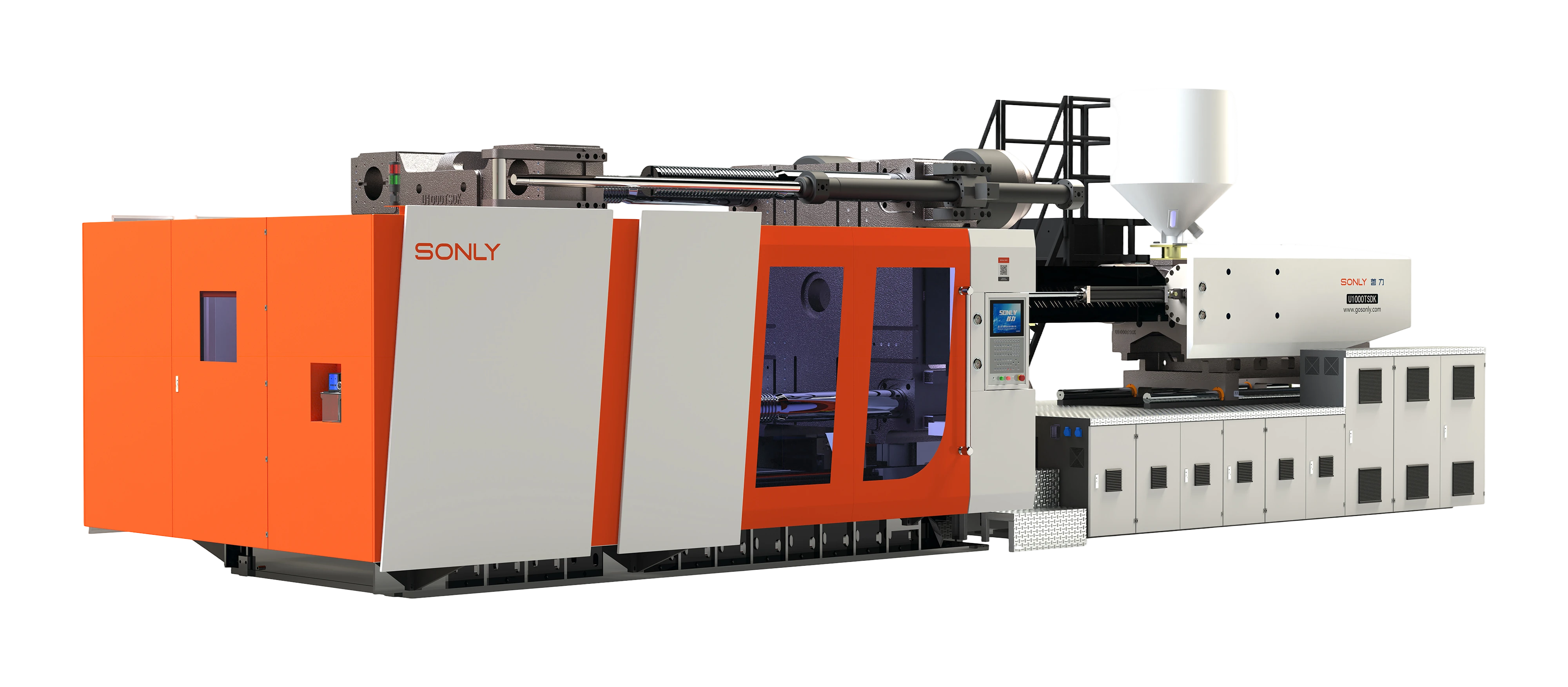

Sonly Two Platen Series

SL1000

Zhejiang Sonly Intelligent Equipment Co.,ltd

Specifications

SL1000

Internationally Recognized Model

78400II

Injection Unit

A

B

C

D

Injection Unit

Screw Diameter(mm)

100

110

120

130

Screw L/D Ratio(l/d)









Shot Volume(cm3)

4241.0

5132.0

6107.0

7167

Injection Pressure(mpa)

211.0

174.0

146.0

125

Theoretical Shot Weight(g)

3859.0

4670.0

5557.0

6522

Injection Stroke(mm)

540

Theoretical Injection Speed(mm/s)

90

Injection Rate(g/s)

643.00

778.00

926.00

1087

Theoretical Shot Weight(oz)









Screw Speed(rpm)

0-96

Clamping Unit

Clamping Force(kn)

1000

Toggle Stroke(mm)

2000/1300

Space Between Tie Bars(mm)

1310x1200

Maximum Formwork Spacing(mm)

2500

Max.mould Height(mm)

1200

Min.mould Height(mm)

500

EJECTOR STROKE(mm)

350

EJECTOR FORCE(Kn)

210

Ejector Number

25

Die Hole Diameter(mm)



Others

Systerm Pressure(mpa)



Motor Power(kw)



Heating Power(kw)



Oil Tank Cubage(l)



Machine Weight(ton)



Boundary Dimension(m)



Servo Driver Capacity(kw)
